Conveyors

Hygienic Conveyor

The hygienic conveyor is a stainless steel conveyor for the demanding hygiene conditions of the food, beverage and meat industries. Smooth surfaces and an open construction make washing and disinfection quick, which shortens cleaning time and improves safety in production.

It is available in widths B410, B620 and B1250 and as a base model.

conveyor widths
410–1250 mm
hygienic design guidelines
EHEDG
supply voltage
400 V

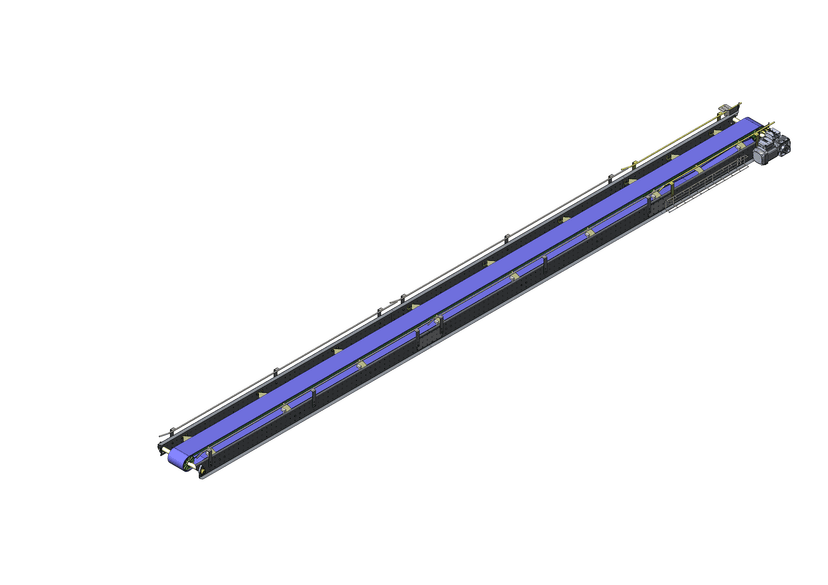

Hygienic Conveyor – Pohjaranta
  • Made in FinlandDesigned and built in Säkylä
  • 300+ projects deliveredFor industrial sites since 1992
  • Installation and commissioningTest run and operator training
System
Handling Systems
Category
Conveyors
Industries
FoodLogisticBeverageBakeryMeat

All products: Conveyors

Hygienic conveyor design: open and easy to wash

All models are made of stainless steel. The open frame and smooth-ground welds leave few places where soil and water can collect, so the conveyor is quick to wash and inspect. The design follows EHEDG recommendations.

Widths and models

  • B410: 410 mm wide, for standard-size washing crates
  • B620: 620 mm wide, for wider loads and larger crates
  • B1250: 1250 mm wide, modular belt for heavy industrial use
  • Base model: for standard washing line applications

Applications

The hygienic conveyor is used as a food conveyor on food, beverage, bakery, meat and logistics lines, especially around washing lines and in other areas where the conveyor is washed regularly.

Technical data

  • Frame: stainless steel, open construction, smooth-ground welds
  • Hygiene: EHEDG recommendations, food and meat industry
  • Speed control: frequency converter, power supply 50 Hz, 400 V
  • Dimensions: to layout drawing

Part of the washing line

The modular construction speeds up installation and maintenance and shortens downtime. The hygienic conveyor connects to Pohjaranta washing lines and other conveyors, and Pohjaranta designs, builds and installs the whole system with its own people from Säkylä, Finland.

Technical Data

Drawing numbers
209824, 235063, 208561, 205347
Available widths
B410, B620, B1250, Base model
Frame material
Stainless steel
Hygiene standards
EHEDG recommendations
Speed control
Frequency converter
Power supply
50 Hz, 400 V
Hygiene class
Food and meat industry
Dimensions
Layout drawing
