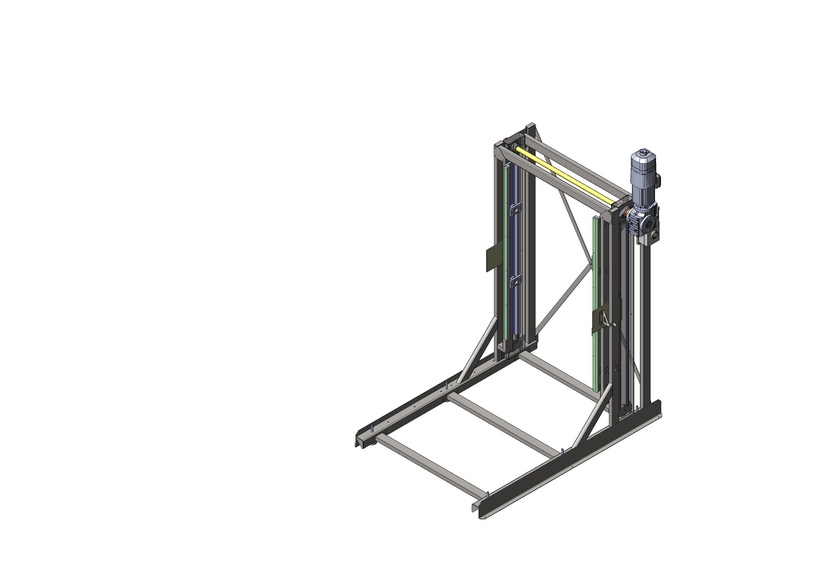

Vertical Conveyor

The vertical conveyor lifts crates from one level to another without a separate elevator or a long conveyor ramp. The lift takes very little floor area, so the line can continue on another level even in tight spaces.

The configuration is chosen for the task: a plain lift, lift with side transfer, or a lift basket with a roller conveyor. Discharge is possible to one or two sides.

model options
3
discharge sides
1–2
compressed air pressure
6 bar
supply voltage
400 V
Vertical Conveyor – Pohjaranta
  • Made in FinlandDesigned and built in Säkylä
  • 300+ projects deliveredFor industrial sites since 1992
  • Installation and commissioningTest run and operator training
System
Handling Systems
Category
Conveyors
Industries
FoodLogisticBeverageBakery

All products: Conveyors

Vertical conveyor models

  • Lift unit: simple vertical lift from level to level without extra functions
  • With side transfer: vertical lift and horizontal transfer in one unit, saving floor area
  • With roller conveyor: the lift basket has a roller conveyor, so crates run in and out of the same basket
  • Discharge to one or two sides

Operation and safety

The lift is pneumatic, and pneumatic safety locks secure the position of the lift basket. PLC-compatible control links the vertical conveyor to the rest of the line automation, so it runs in step with the conveyors before and after it.

Technical data

  • Actuator: pneumatic, with safety locks
  • Compressed air: 6 bar
  • Control: PLC compatible
  • Frame: stainless steel, meets food industry hygiene requirements
  • Power supply: 50 Hz, 400 V

Part of the conveyor system

The vertical conveyor connects to Pohjaranta washing lines and conveyors. Pohjaranta designs, builds and programs the conveyor system itself, so the lift, the conveyors and the controls work as one system.

Technical Data

Drawing numbers
219734, 220966, 217858
Available models
Lift unit, With side transfer, With roller conveyor
Actuator
Pneumatic with safety locks
Control
PLC compatible
Frame material
Stainless steel
Compressed air
6 bar
Power supply
50 Hz, 400 V
Hygiene class
Food industry
